1. Plug-in Sensor: Single Channel Portable Gas Detector provides a full year of warranted protection against hazardous gases.
2. Portable Design: Detects the smallest gas leaks on service lines and joints for enhanced safety.
3. Easy Handling: Three keys for easy programming, including one for power ON/OFF.
4. Simple Calibration: Front keys allow for easy software calibration.

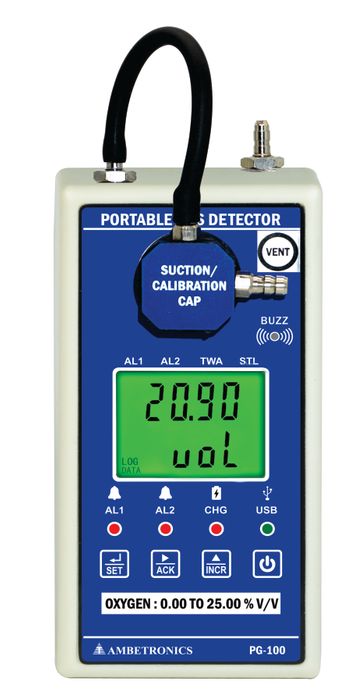

5. Digital Display: LCD display with backlight unit, adjustable to show Gas Concentration in various units (%V/V, %LEL, PPM, PPB, µg/m³, or mg/m³).
6. Customizable Alarms: User-settable Alarm 1 and Alarm 2 with LCD display alert in five colors (Red, Blue, Yellow, Cyan, Violet).
7. Password Protection: Function menu is password protected for security.
8. Multiple Alarms: Low, High, TWA (Time-Weighted Average), and STEL (Short-Term Exposure Limit) alarms with buzzer, vibrator alerts, and LED indications.
9. Calibration Due Indication: Alerts when calibration is required.
10. Sensor Status Indication: Alerts for sensor open or over range conditions with flashing blue and white colors.
11. Optional Data Logging: Single Channel Portable Gas Detector supports data logging and downloading with a capacity of up to 50,000 records in ASCII format.
12. Battery Status Indication: Shows battery status on the LCD with LED indication for battery charging and LOW BAT indication with buzzer beep sound.
13. Unit Conversion: Allows user setting for unit conversion.
14. Rechargeable Battery: Powered by a rechargeable battery for convenience.
15. Compact and Lightweight: Small and light design for easy portability.
16. Pump Blockage Detection: Facility to detect pump blockage in suction type.

Technical Specifications:

1. Sensors: Electrochemical, Catalytic, Pellistor, NDIR, PID.
2. Detection Method: Suction.
3. Response Time: Less than 10 seconds.
4. Parameter Setting: Setting by 3 keys (SET, SHIFT, INCR).
5. Alarm Set Point: Two independent set points, AL1 and AL2, with LED indication.
6. Display: 2-line LCD with backlight, normal mode White/Green in color.
7. Operating Temperature: -10°C to +55°C.
8. Storage Temperature: -10°C to +60°C.
9. Humidity: Below 95% RH, Non-condensing.
10. Material: ABS Plastic.
11. Dimensions (Suction Type): 150 mm (H) x 70 mm (W) x 50 mm (D).
12. Weight (Suction Type): 260 grams.
13. Common Deliverables: Test calibration certificate, Reference calibration gas certificate, User Manual, AC Charger Adaptor, Protection rubber cover, USB cable (for data logging option), Calibration Cap for Diffusion type.
14. Optional Suction Accessories: Calibration & Suction cap, Gas Sampling Hose (PVC), Gas sensing Probe (Standard size 13”, available above 13” on request).
15. Optional Data Logging: Logging Capacity of 50,000 records with data available in ASCII format, Data Download to PC Through USB interface using Terminal software.
