Protege Touch Sense LCD Keypad — Sleek Control at Your Fingertips
)
)
)
)
A sleek, user-friendly interface to the Protege integrated system, giving authorised users control of access, security and building automation from one device.
For the end user
- Arm and disarm alarms easily, with simple, plain-text prompts
- One tidy panel controls security, doors and building functions
- Duress and panic codes provide discreet help in an emergency
- Stylish black or white finish suits reception areas and office walls
- Arm/disarm areas, monitor inputs, control outputs and manage users at the keypad
- Plain-text LCD prompts guide users through arming and disarming
- View open inputs during the pre-arming phase
- Dual-credential authentication (ID + PIN, or card + PIN)
- Dual code and master code functions for ATM/vault-grade areas
- Individual reportable duress codes and panic events
- Energy-smart backlit 16×2 alphanumeric LCD; 23-key capacitive touch keypad; 3 status LEDs
- 2 inputs standard (4 in duplex mode) plus tamper; 1 open-collector output for local expansion
- Single RS-485 module network port; firmware updates via ICT Loadit
- Slim 125 × 125 × 20 mm housing

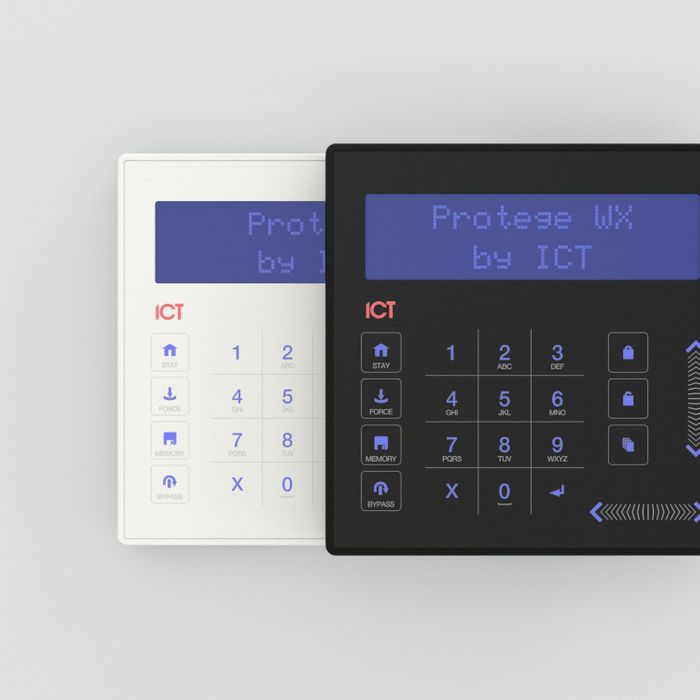

- Available in black or white
