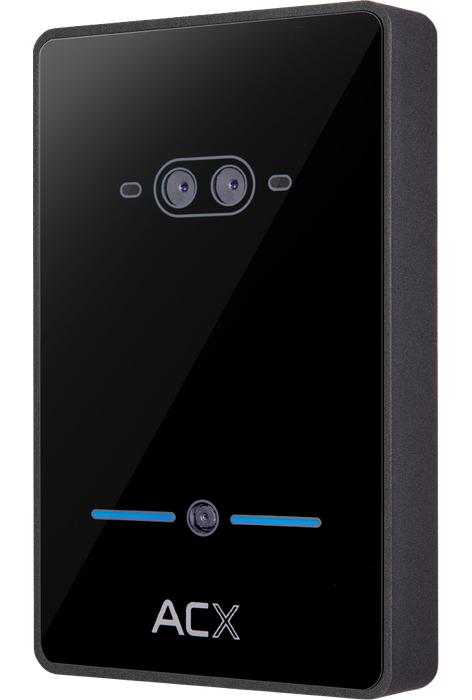

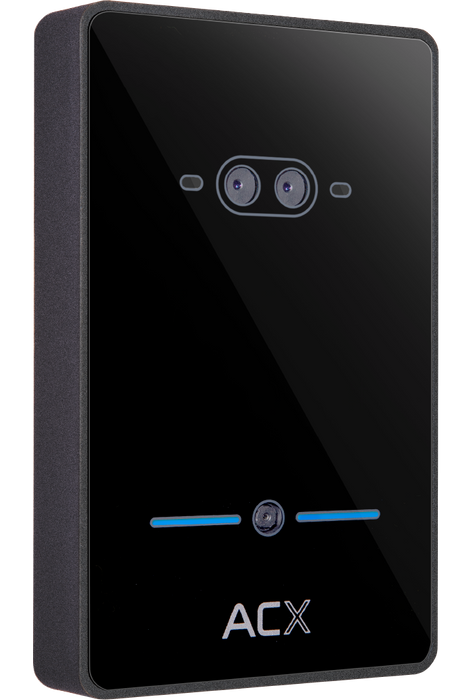

ACX X5 Multi-technology Reader
)
)
)
)
- Totally 50,000 templates for Facial and/or Palm Vein
- Support 13.56MHz NXP Mifare, Mifare Plus, DESFire, LEGIC, SONY Felica & HID iCLASS
- Work with 8901P Door Access Controller
- Support ACX Mobile Virtual Card, Bluetooth 4.0+, and Scramble QR Code
- Red/Green/Blue or mixed color LED for visual notification
- Reader buzzer for audio notification
- Optical sensor tamper, "I Am Alive" feature
- Reader outputs Wiegand, OSDP V2, and ACX proprietary scramble encryption, auto-detection
- 13.56 MHz ISO card: 5cm+, 125 KHz ISO card: 8cm, Bluetooth: 0.5 to 10 meters, QR code 4 to 22cm, Palm Vein: 3cm to 12cm
- Waterproof IP55
- Dimensions: 80mm x 130mm x 20mm
